Paver Block Making Machine

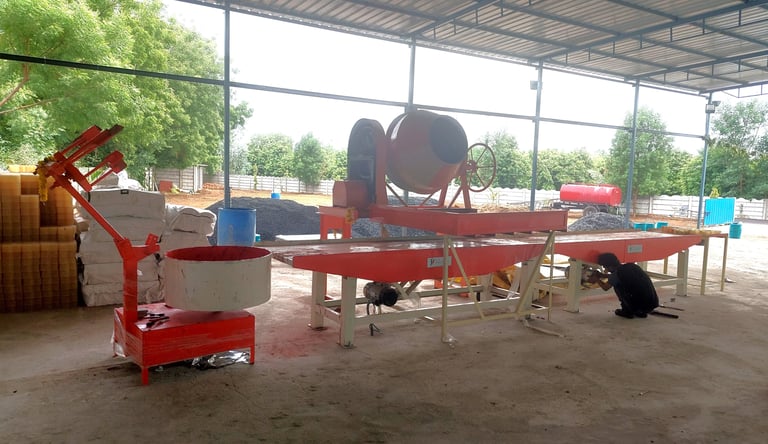

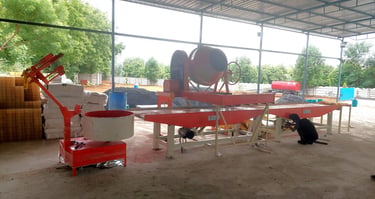

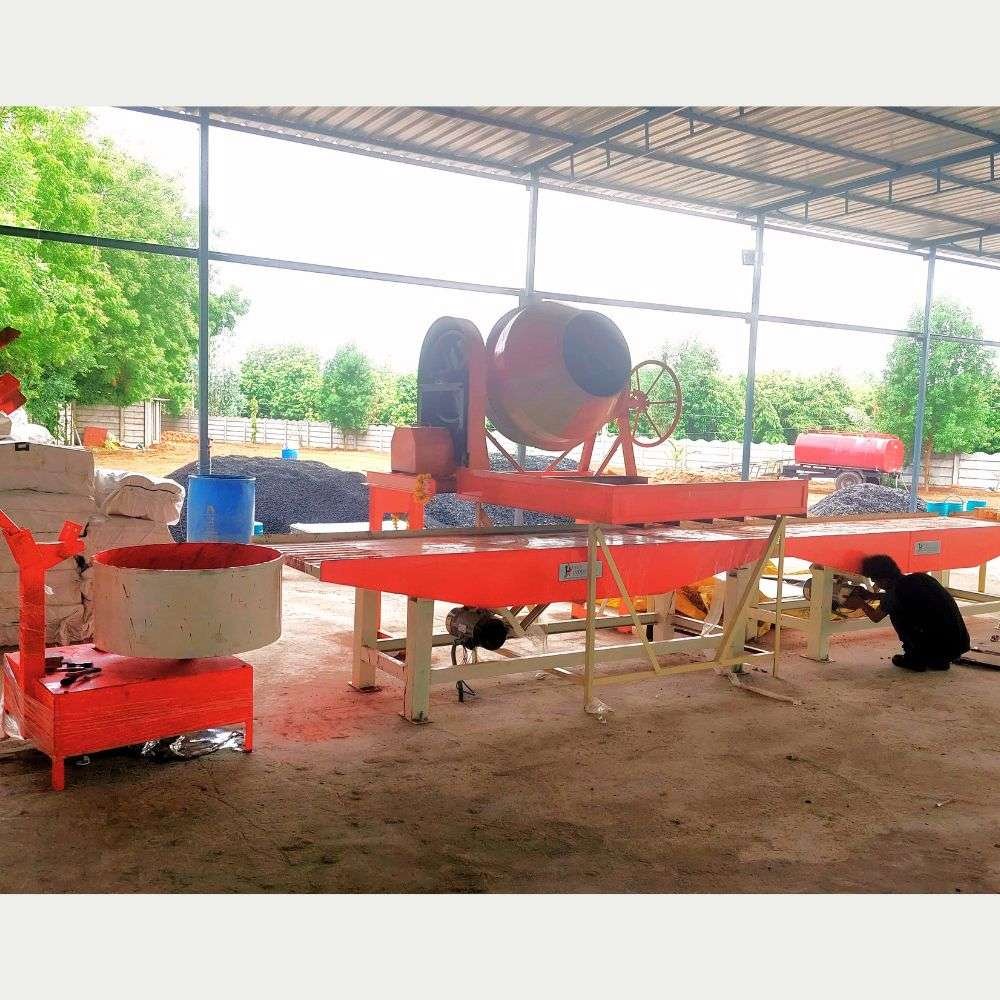

Paver Block Making Machine Setup
- 2 Nos Vibrating Tables (Size: 10×3 ft): Ensures proper vibration and setting of paver blocks.
- 1 Nos Color Pan Mixer Machine: For mixing pigment colors with cement for high-quality colored pavers.
- 1 Nos Concrete Mixer (1 Bag Capacity): Ensures uniform mixing of raw materials.
- 1 Nos Middle Table (Size: 6×4 ft): Additional workspace for handling and finishing.
- 1 Supporting Table (Size: 3×3 ft): Extra support during the production process.
Machine Specifications & Features
- Automation: Manual (easy-to-operate system)
- Brand: HVB
- Power Requirement: 11 HP (total)
- Table Size: 10×3 ft
- Table Motor: 2 HP each (heavy-duty vibration motors)
- Mixer Motor: 2 HP (color mixer), 5 HP (concrete mixer)
- Material Thickness: 8 mm bottom & 8 mm side plate (table), 5 mm side & 10 mm bottom (color mixer)
How Does This Paver Block Machine Work?
- 1️⃣ Raw Material Preparation: Cement, sand, stone dust, and color pigments are mixed using the color pan mixer and concrete mixer.
- 2️⃣ Mold Filling: Mixed material is poured into customized molds placed on the vibrating tables.
- 3️⃣ Vibration Process: High-power vibration motors remove air gaps and ensure uniform compaction.
- 4️⃣ Curing & Drying: Blocks are dried and cured to achieve maximum strength and durability.
- 5️⃣ Final Product: Finished paver blocks are ready for sale and construction use.
Benefits of Our Paver Block Making Machine
- Cost-effective production – ideal for small businesses & startups
- High durability with strong vibration technology
- Low maintenance and long service life
- User-friendly manual operation
- Customizable molds for different sizes and designs
- Energy efficient with high output efficiency
