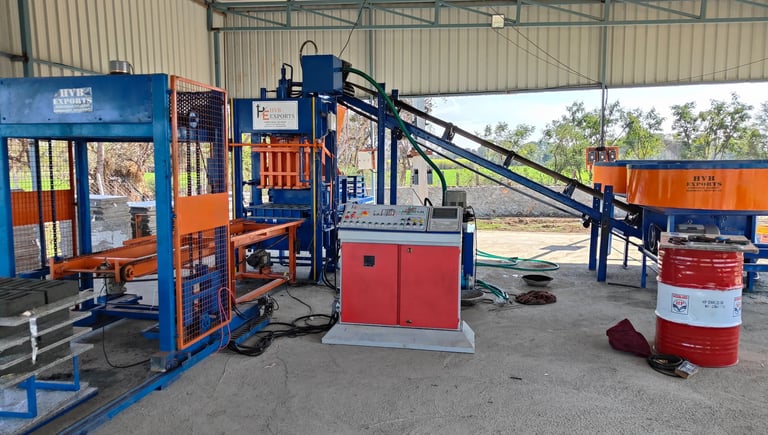

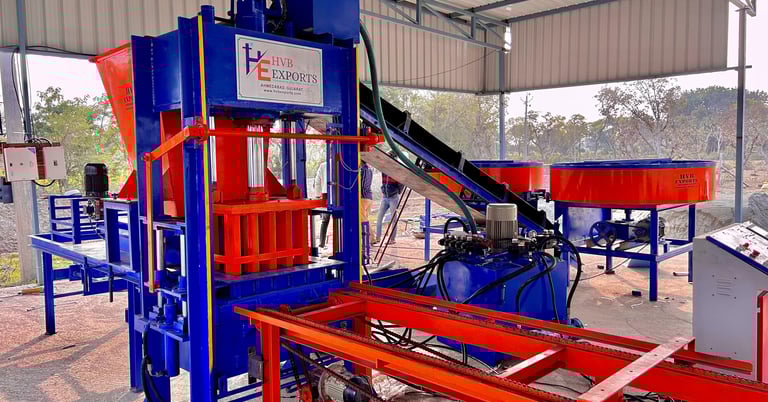

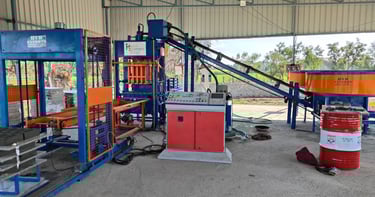

Technical Specifications
1. Machine Configuration
- Production Capacity: 14,000 – 15,000 bricks per 8-hour shift (1,800 – 1,900 bricks/hour)
- Cycle Time: 18 – 20 seconds per cycle
- Hopper Capacity: 500 kg
- Main Hydraulic Pressure: 150 Ton
- Feeder Cylinder Capacity: 5 Ton
- Pallet Cylinder Capacity: 5 Ton
- Vibration Mechanism: 2 HP high-efficiency vibro motor for precise brick shaping
2. Hydraulic Power Pack
- Motor Power: 7.5 HP (Crompton Greaves / Havells – premium efficiency motor)
- Hydraulic Valves: YUKEN / REXROTH industrial-grade precision valves
- Hydraulic Oil Capacity: 400 L (68 No. grade hydraulic oil)
- Pre-Tank Capacity: 60 L
- Cooling System: Water-cooled hydraulic oil cooler for long-lasting performance
3. High-Performance Roller Pan Mixer (2 Units)
- Motor Power: 10 HP energy-efficient motor (Crompton Greaves / Havells)
- Mixing Capacity: 600 kg per batch (6 FT DIA)
- Mixing Mechanism: Dual crushing rolls & twin mixing arms
- Gearbox: Factory-integrated heavy-duty gearbox
- Discharge System: Automatic / Manual (as per requirement)
- Side Plate Thickness: 5 / 6 mm + 3 mm
- Bottom Plate Thickness: 10 mm
- Frame Structure: Heavy-duty channel (75×40 mm outer, 100×50 mm inner)
- Gearbox Ratio: 22:1 for optimal torque distribution
4. Conveyor Belt System
- Motor Power: 2 HP high-torque motor
- Belt Dimensions: 1.5 ft × 18 ft
- Belt Material: M24 industrial-grade rubber
- Frame Structure: Heavy-duty channel (100×50 mm)
5. Automated Control System
- Electrical Components: Siemens industrial-grade accessories
- Control System: PLC-based user-friendly control panel
6. Pallet Handling System with Auto Stacking
- Standard Configuration: 2 heavy-duty manual trolleys (each carries 4 pallets per cycle)
- Optional Upgrade: Hydraulic auto stacking system (2 hydraulic trolleys)
- Auto Stacking Benefits: No manual pallet lifting, robotic pallet pulling & stacking, higher productivity, reduced manpower
7. Manpower Requirement
- Minimum Workforce: 5–6 laborers + 1 panel operator
8. Electrical Power Requirement
- Total Connected Load: 40 HP, 3-phase power supply
9. Pallet Dimensions
- Standard Pallet Size: 800 mm × 600 mm × 18 / 20 mm
