MANUFACTURER EXPORTER COMPLETE PLANT SOLUTION

FLY ASH BRICK&PAVER BLOCK
MAKING MACHINES

Manufacturer of Fly Ash Brick & Paver Block Making Machines

HIGH
PERFORMANCE

RELIABLE &
DURABLE

HIGH
PRODUCTIVITY

TRUSTED
WORLDWIDE

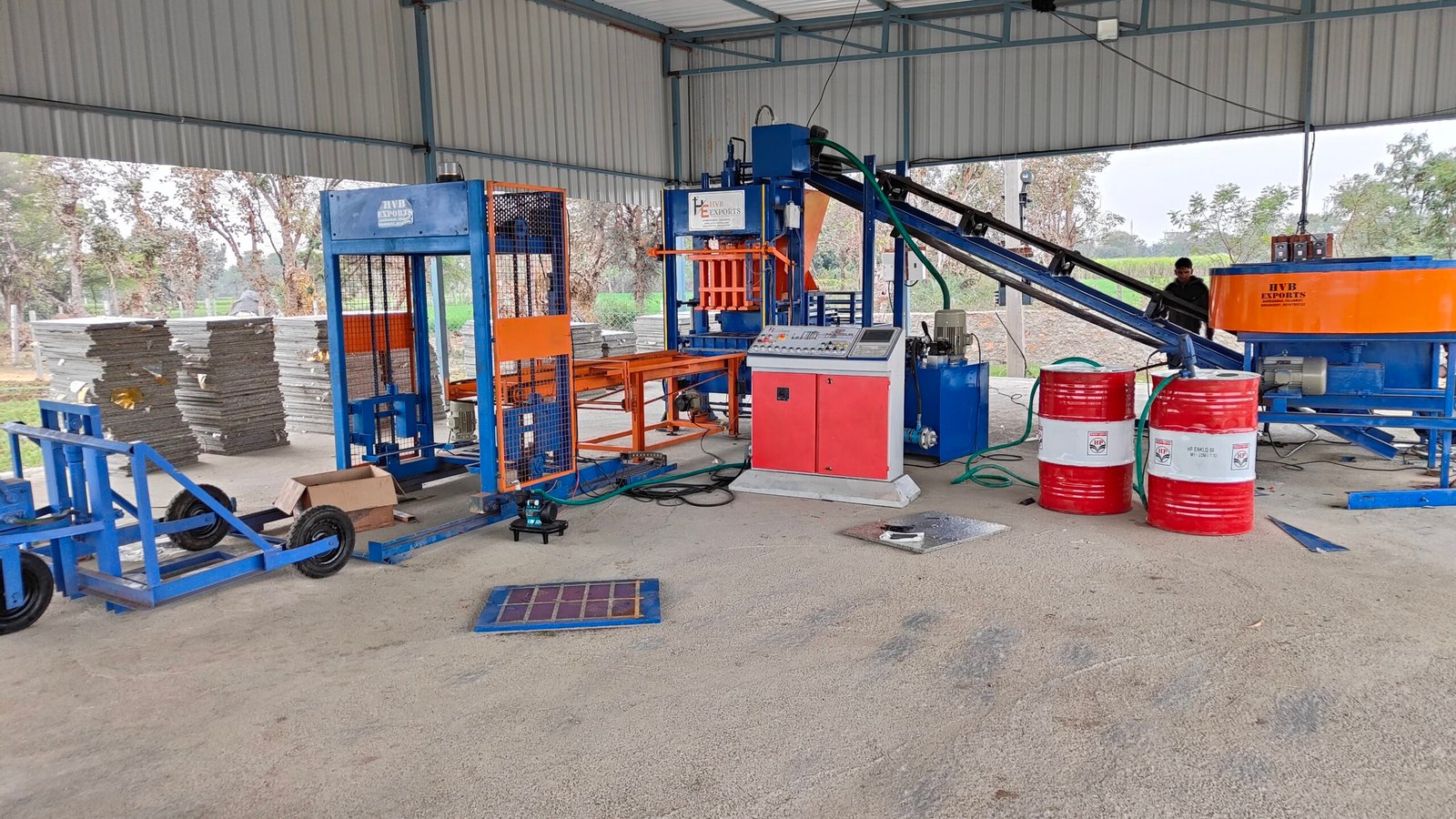

HVB Exports Fly Ash Brick Machine

BUILT FOR
STRENGTH.
DESIGNED FOR
SUCCESS.

VISIT OUR WEBSITEwww.hvbexports.com
CHAT ON WHATSAPPScan QR Code
CALL OUR EXPERT+91 99094 92697
+91 90167 85122
HVB Exports - Fly Ash Brick Making Machine

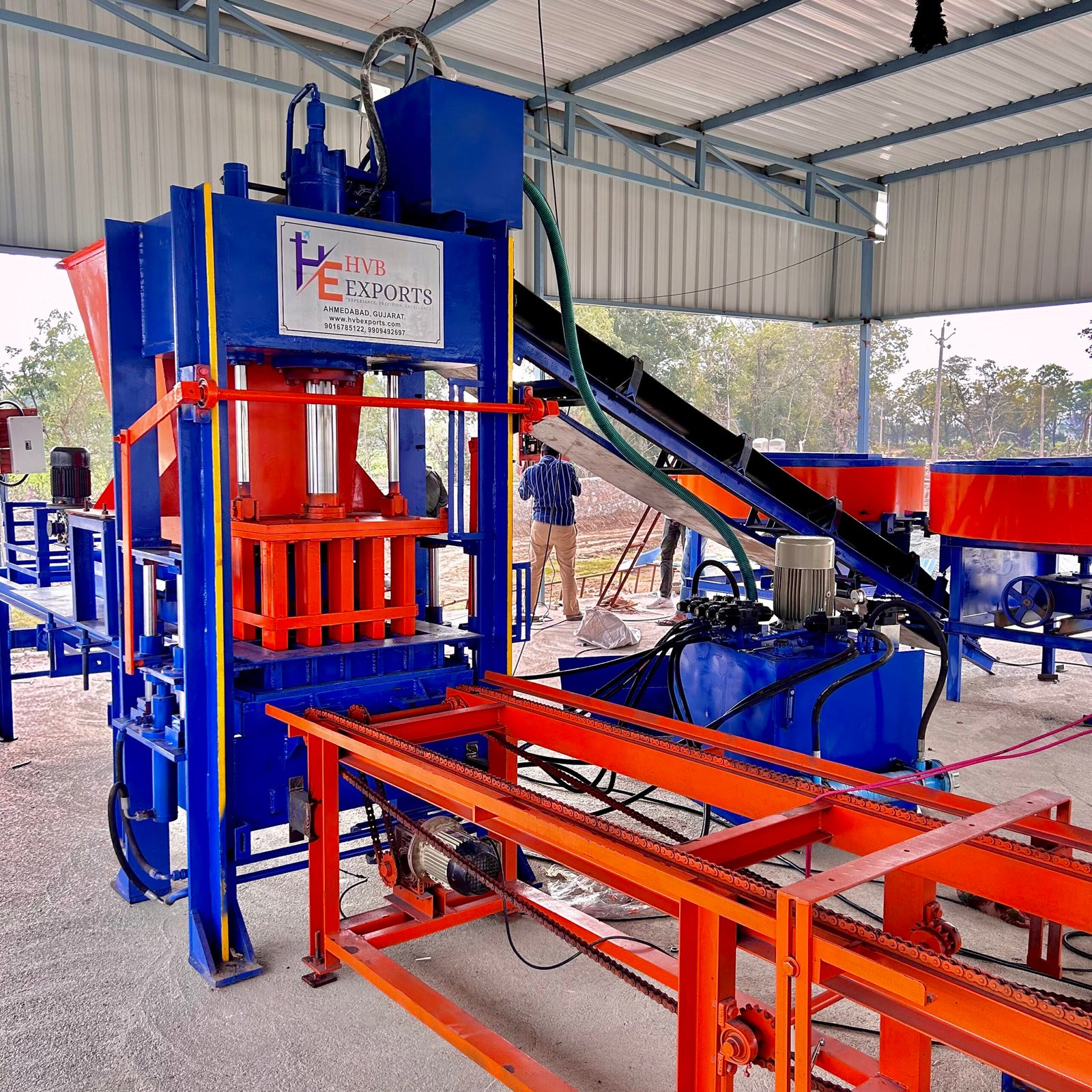

HVB2160
12 BRICK / STROKE
High Performance Automatic Brick Making Machine
HVB2160

KEY FEATURES

200 TonHydraulic Pressure
PLC BasedTouch Panel
Water CoolingSystem
18 – 20 SecCycle Time
17,280Bricks / Shift
Main Technology
High Press Hydraulic + Vibration
Hydraulic Press
200 Ton Hydraulic Pressure
Pan Mixer
600 Kg * 2 Nos
Power
37 HP
Panel
PLC Based Touch Panel
Hydraulic Motor
10 HP (Crompton)
Pre Tank
80 Ltr
Pan Mixer Motor
10 HP (Crompton)
Cycle
18-20 Sec
Conveyor Belt
18 Ft Long
Vibration
5 HP
Pallet Size
800*500*18mm
Oil Cooling
Water Cooling
Oil Tank
400 LTR
Ply Rail
12-15 Ft Long
Hopper
Attached
Our Machine Products
FLY ASH BRICKS
230x110x75 mm (12)
Pcs/Hour: 2160
Pcs/Shift: 17,280
SOLID BRICKS
190x90x90 mm (14)
Pcs/Hour: 2520
Pcs/Shift: 20,160
I-SHAPE PAVER BLOCK
200x165x60/80mm (10)
Pcs/Hour: 1800
Pcs/Shift: 14,400
CONCRETE/HOLLOW BLOCK
390x190x190 mm (3)
Pcs/Hour: 540
Pcs/Shift: 4320
CEMENT BRICKS
228x101x75 mm (12)
Pcs/Hour: 2160
Pcs/Shift: 17,280
CONCRETE/HOLLOW BLOCK
300x200x200 mm (3)
Pcs/Hour: 540
Pcs/Shift: 4320
ZIG ZAG PAVER BLOCK
225x112x60/80mm (10)
Pcs/Hour: 1800
Pcs/Shift: 14,400
CONCRETE/HOLLOW BLOCK
400x200x200 mm (3)
Pcs/Hour: 540
Pcs/Shift: 4320
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
Built for Performance. Engineered for Reliability.
HVB1800
(10 BRICK) AUTOMATIC PLANT
High Press Hydraulic + Vibration Technology
HVB1800

HIGHLIGHTS

180 TonHydraulic Pressure
18-20 SecCycle Time
1800 Pcs / HourMaximum Production
Technical Specifications
Main Technology
High Press Hydraulic + Vibration
Hydraulic Press
180 Ton Hydraulic Pressure
Pan Mixer
500 Kg * 2 Nos
Power
32 HP
Panel
PLC Based Touch Panel
Hydraulic Motor
10 HP (Crompton)
Pre Tank
80 Ltr
Pan Mixer Motor
7.5 HP (Crompton)
Cycle Time
18-20 Sec
Conveyor Belt
18 Ft Long
Vibration Motor
5 HP
Pallet Size
800 x 500 x 18 mm
Oil Cooling
Water Cooling
Oil Tank
400 LTR
Ply Rail
12-15 Ft Long
Hopper
Attached
Production Capacity (Approx.)
FLY ASH BRICKS
230x110x75 mm (10)
Pcs/Hour: 1800
Pcs/Shift: 14,400
SOLID BRICKS
190x90x90 mm (12)
Pcs/Hour: 2160
Pcs/Shift: 17,280
I-SHAPE PAVER BLOCK
225x112x60/80 mm (8)
Pcs/Hour: 1440
Pcs/Shift: 11,520
CONCRETE/HOLLOW BLOCK
390x190x190 mm (3)
Pcs/Hour: 540
Pcs/Shift: 4320
CEMENT BRICKS
228x101x75 mm (10)
Pcs/Hour: 1800
Pcs/Shift: 14,400
CONCRETE/HOLLOW BLOCK
300x200x200 mm (3)
Pcs/Hour: 540
Pcs/Shift: 4320
ZIG ZAG PAVER BLOCK
225x112x60/80 mm (8)
Pcs/Hour: 1440
Pcs/Shift: 11,520
CONCRETE/HOLLOW BLOCK
400x200x200 mm (3)
Pcs/Hour: 540
Pcs/Shift: 4320
CALL US+91 99094 92697 / +91 90167 85122
VISIT OUR WEBSITEwww.hvbexports.com
LOCATIONAhmedabad, Gujarat, India
QUALITY MACHINESStronger Bricks. Better Tomorrow.
HVB Exports - Fly Ash Brick Making Machine

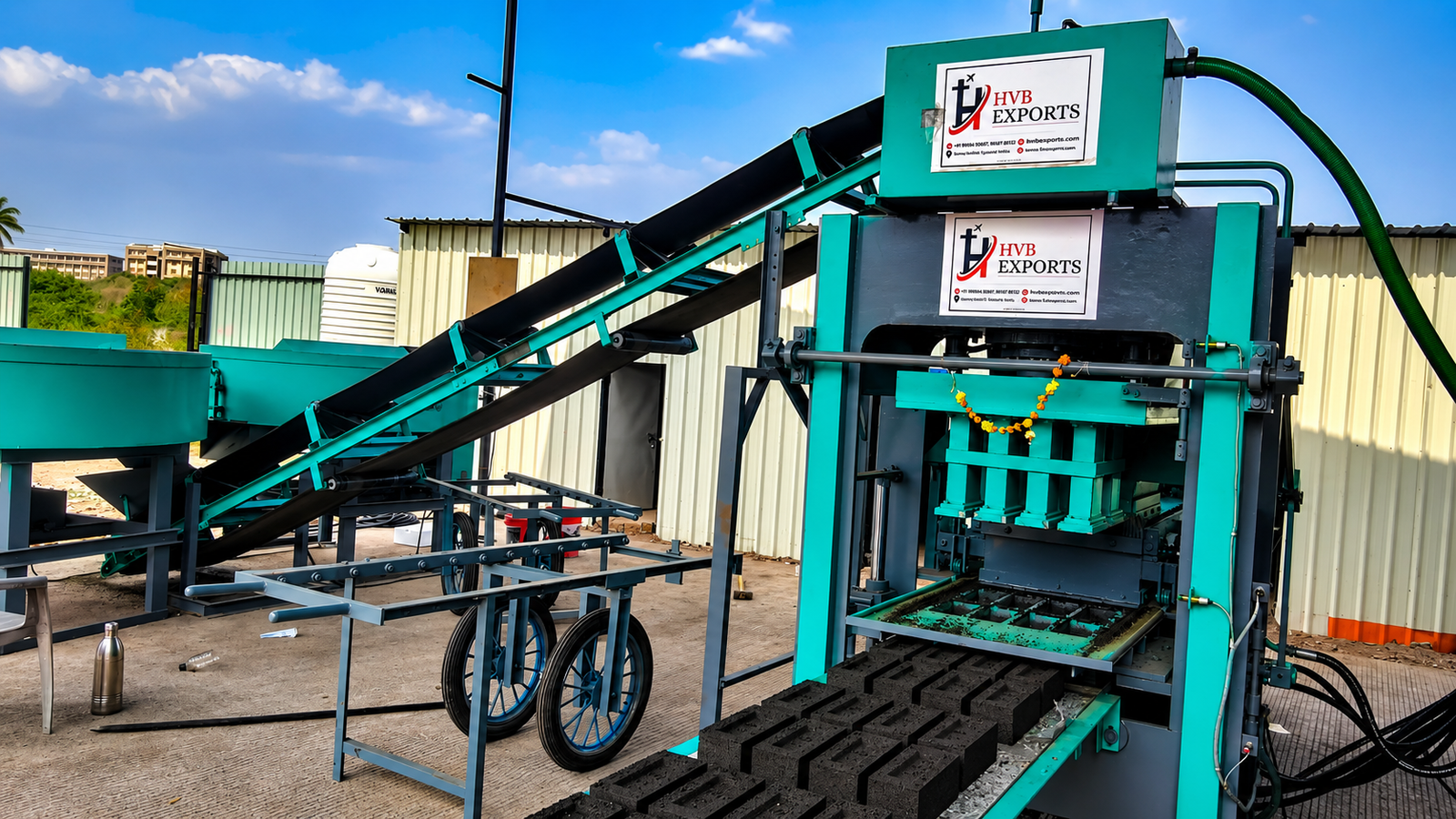

HVB1400 (8 BRICK)
HVB1400
Main Technology
High Press Hydraulic + Vibration
Hydraulic Press
140 Ton Hydraulic Pressure
Pan Mixer
500 Kg * 2 Nos
Power
30 HP
Panel
PLC Based Touch Panel
Hydraulic Motor
10 HP (Crompton)
Pre Tank
80 Ltr
Pan Mixer Motor
7.5 HP (Crompton)
Cycle
18-20 Sec
Conveyor Belt
18 Ft Long
Vibration
3 HP
Pallet Size
600*600*18mm
Oil Cooling
Water Cooling
Oil Tank
400 LTR
Ply Rail
12-15 Ft Long
Hopper
Attached
FLY ASH BRICKS
230x110x75 mm (8)
Pcs/Hour: 1400
Pcs/shift: 11,200
SOLID BRICKS
190x90x90 mm (10)
Pcs/Hour: 1800
Pcs/shift: 14,400
I-SHAPE PAVER BLOCK
200x165x60/80mm (6)
Pcs/Hour: 1080
Pcs/shift: 8640
CONCRETE/HOLLOW BLOCK
390x190x190 mm (2)
Pcs/Hour: 360
Pcs/shift: 2880
CEMENT BRICKS
228x101x75 mm (8)
Pcs/Hour: 1400
Pcs/shift: 11,200
CONCRETE/HOLLOW BLOCK
300x200x200 mm (2)
Pcs/Hour: 360
Pcs/shift: 2880
ZIG ZAG PAVER BLOCK
225x112x60/80mm (6)
Pcs/Hour: 1080
Pcs/shift: 8640
CONCRETE/HOLLOW BLOCK
400x200x200 mm (2)
Pcs/Hour: 360
Pcs/shift: 2880
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine
HVB1080 (6 BRICK)
HVB1080
Main Technology
High Press Hydraulic + Vibration
Hydraulic Press
120 Ton Hydraulic Pressure
Pan Mixer
600 Kg * 1 Nos
Power
21.5 HP
Panel
PLC Based Touch Panel
Hydraulic Motor
7.5 HP (Crompton)
Pre Tank
60 Ltr
Pan Mixer Motor
10 HP (Crompton)
Cycle
15-20 Sec
Conveyor Belt
18 Ft Long
Vibration
2/3 HP
Pallet Size
600*800*18mm
Oil Cooling
Water Cooling
Oil Tank
350 LTR
Ply Rail
10-12 Ft Long
Hopper
Attached
FLY ASH BRICKS
230x110x75 mm (6)
Pcs/Hour: 1080
Pcs/shift: 8640
SOLID BRICKS
190x90x90 mm (6)
Pcs/Hour: 1080
Pcs/shift: 8640
I-SHAPE PAVER BLOCK
200x165x60/80mm (4)
Pcs/Hour: 720
Pcs/shift: 5760
CONCRETE/HOLLOW BLOCK
390x190x190 mm (1)
Pcs/Hour: 180
Pcs/shift: 1440
CEMENT BRICKS
228x101x75 mm (6)
Pcs/Hour: 1080
Pcs/shift: 8640
CONCRETE/HOLLOW BLOCK
300x200x200 mm (2)
Pcs/Hour: 360
Pcs/shift: 2880
ZIG ZAG PAVER BLOCK
225x112x60/80mm (4)
Pcs/Hour: 720
Pcs/shift: 5760
CONCRETE/HOLLOW BLOCK
400x200x200 mm (1)
Pcs/Hour: 180
Pcs/shift: 1440
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine

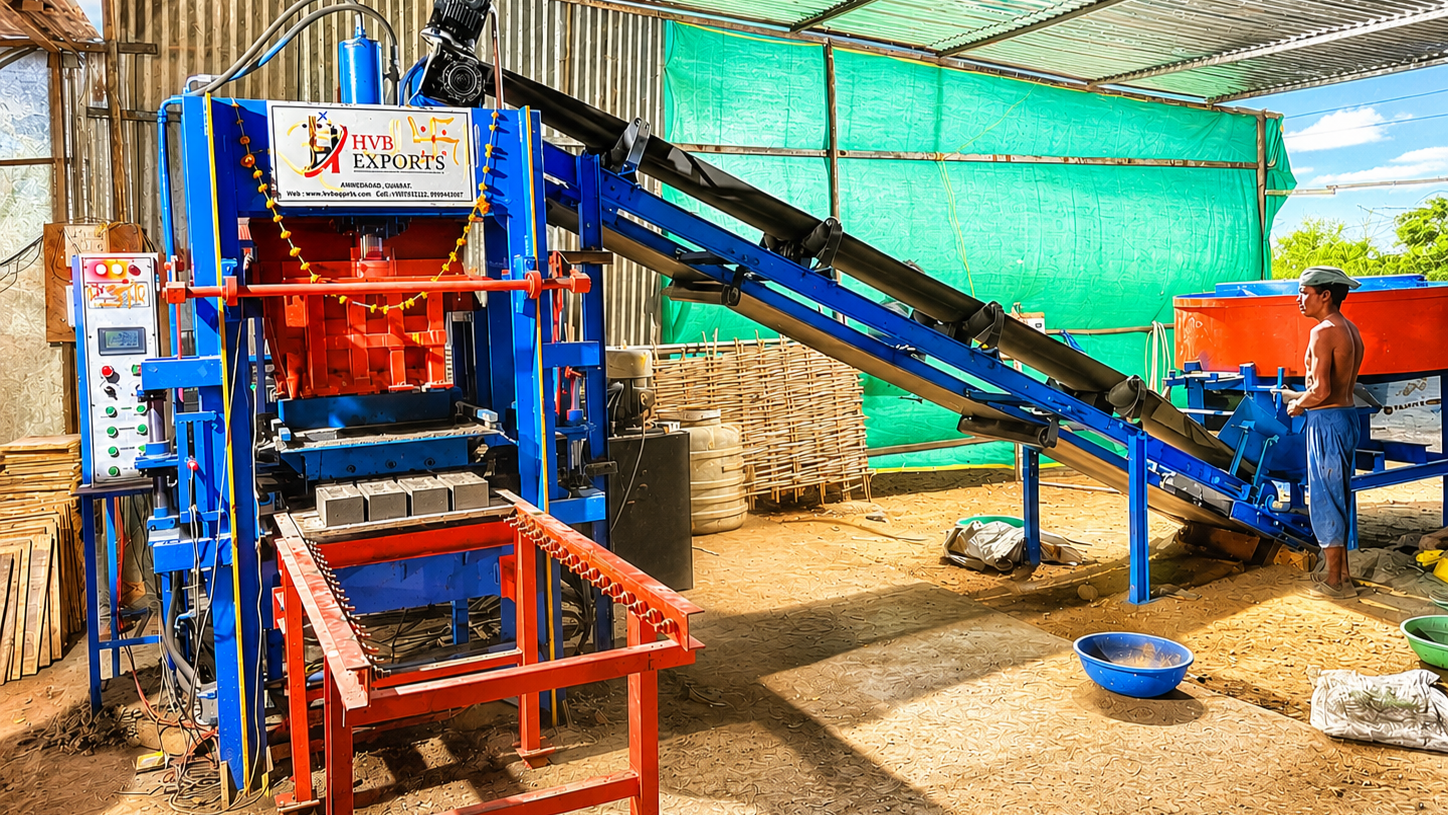

HVB800 (4 BRICK)
HVB800
Main Technology
High Press Hydraulic + Vibration
Hydraulic Press
80 Ton Hydraulic Pressure
Pan Mixer
500 Kg * 1 Nos
Power
19 HP
Panel
PLC Based Touch Panel
Hydraulic Motor
7.5 HP (Crompton)
Pre Tank
50 Ltr
Pan Mixer Motor
7.5 HP (Crompton)
Cycle
12-15 Sec
Conveyor Belt
18 Ft Long
Vibration
2 HP
Pallet Size
600*300*18mm
Oil Cooling
Water Cooling
Oil Tank
300 LTR
Ply Rail
8-10 Ft Long
Hopper
Attached
FLY ASH BRICKS
230x110x75 mm (4)
Pcs/Hour: 960
Pcs/shift: 7680
SOLID BRICKS
190x90x90 mm (4)
Pcs/Hour: 960
Pcs/shift: 7680
I-SHAPE PAVER BLOCK
200x165x60/80mm (2)
Pcs/Hour: 480
Pcs/shift: 3840
CONCRETE/HOLLOW BLOCK
390x190x190 mm (1)
Pcs/Hour: 240
Pcs/shift: 5760
CEMENT BRICKS
228x101x75 mm (4)
Pcs/Hour: 960
Pcs/shift: 7680
CONCRETE/HOLLOW BLOCK
300x200x200 mm (1)
Pcs/Hour: 240
Pcs/shift: 5760
ZIG ZAG PAVER BLOCK
225x112x60/80mm (2)
Pcs/Hour: 480
Pcs/shift: 3840
CONCRETE/HOLLOW BLOCK
400x200x200 mm (1)
Pcs/Hour: 240
Pcs/shift: 5760
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine
HVB-4C
SEMI AUTOMATIC BRICK MAKING MACHINE
HVB-4C
Technical Specifications
Main Technology
Bottom Press Hydraulic
Hydraulic Press
80 Ton Hydraulic Pressure
Pan Mixer
500 Kg
Power
14.5 HP
Operation
Liver type or with panel (as per need)
Hydraulic Motor
5 HP (Crompton)
Dai Changeable
Yes, you can change dai as per need
Pan Mixer Motor
7.5 HP (Crompton) with gear box
Cycle
18-20 Sec
Conveyor Belt
16-18 Ft Long
Mixture Type
Roller and Blade type
Hopper
250 Kg
Oil Cooling
Water Cooling
Main Top Plate
30-35mm
PCM
Yes, attached
Conveyor Belt
2 HP with gear box
Our Machine Products
FLY ASH BRICKS
230x110x75 mm (4)
Pcs/Hour: 480
Pcs/shift: 3,840
SOLID BRICKS
228*150*100 mm (2)
Pcs/Hour: 240
Pcs/shift: 1,920
I-SHAPE PAVER BLOCK
200x165x60/80mm (3)
Pcs/Hour: 360
Pcs/shift: 2,880
ZIG ZAG PAVER BLOCK
225x112x60/80mm (3)
Pcs/Hour: 360
Pcs/shift: 2,880
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine
HVB-2C
SEMI AUTOMATIC BRICK MAKING MACHINE
HVB-2C
Main TechnologyBottom Press Hydraulic
Hydraulic Press60-80 Ton Hydraulic Pressure
Cavity2 / 3 Brick Per Stroke
Cycle12-20 Sec
Hydraulic Motor3 HP Crompton Make
Main Top Plate30-35mm
PCMYes, attached
Material FeederYes, Attached
Warranty1 Year
PhaseSingle & Three both available
Pan Mixer150 Kg
Mixer Motor3 HP
Mixture TypeRoller and Blade type
FLY ASH BRICKS
230x110x75 mm (2/3)
SOLID BRICKS
228*150*100 mm (1/2)
I-SHAPE PAVER BLOCK
200x165x60/80mm (1/2)
ZIG ZAG PAVER BLOCK
225x112x60/80mm (1/2)

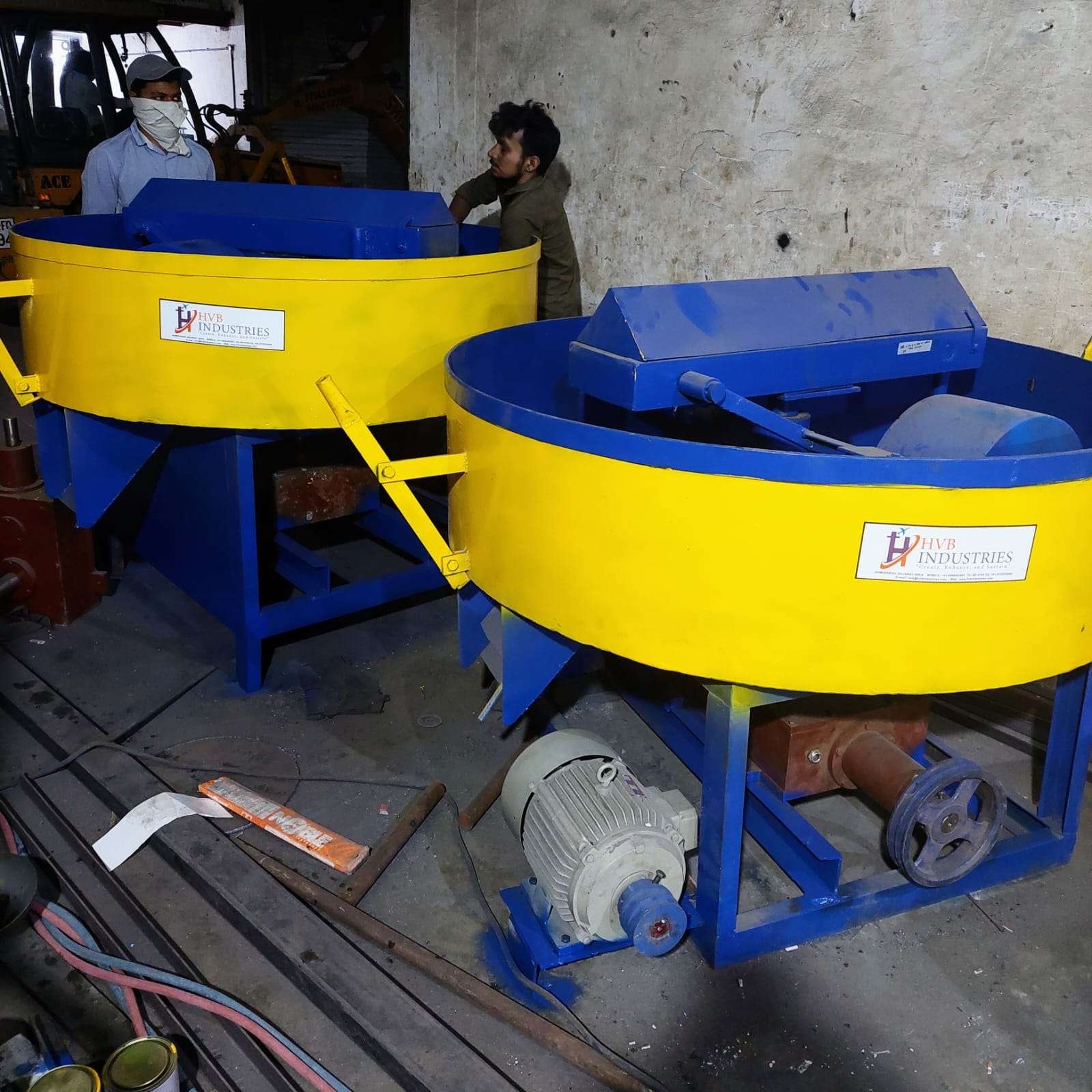

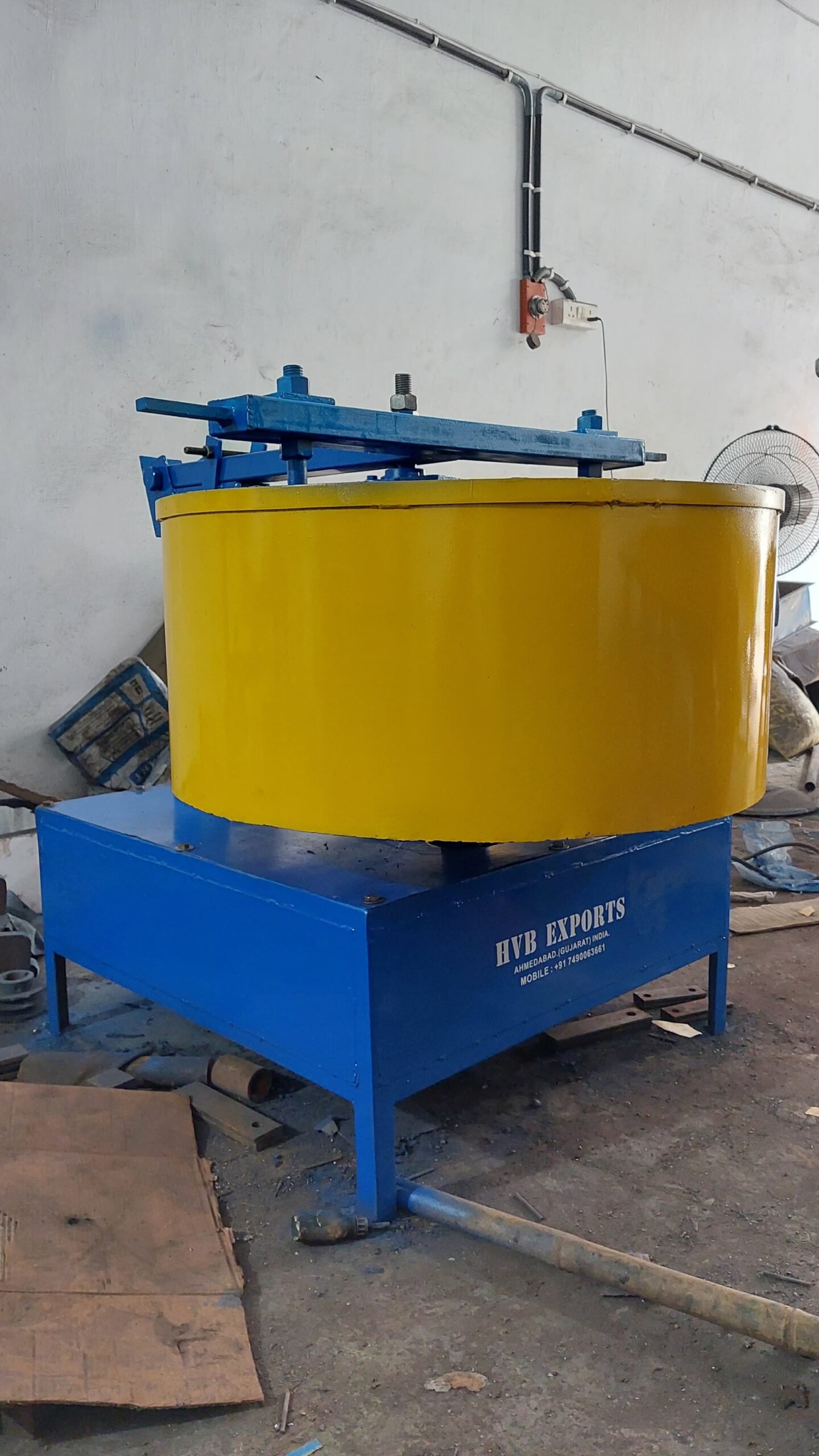

HVB-PAN Pan Mixer Machine
Capacity600 Kg  /  500 Kg  /  250 Kg
Diameter6 FT  /  5 FT  /  4 FT
Motor10 HP  /  7.5 HP  /  5 HP
Gear Box Ratio22.1  /  22.1  /  24.1
TypeRoller and Blade type mixture
Thickness6mm side and 10mm bottom plate
Roller2 Nos Roller for crushing
Blade2 Nos Blade for mixing
DischargeGear type / Hydraulic Gate opening
HVB Pan Mixer
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine

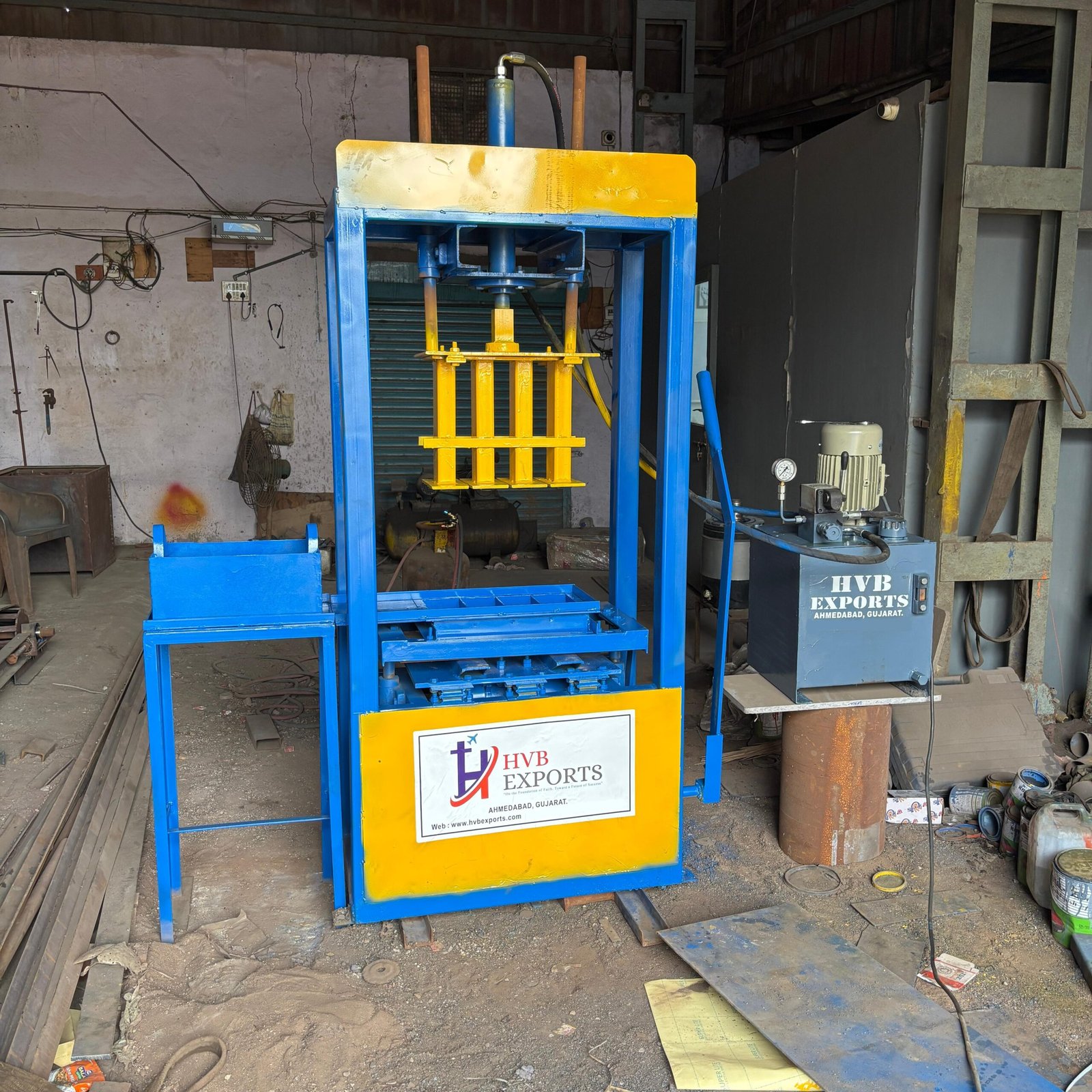

HVB300 Manual Hydraulic Brick Making Machine
HVB300
Main TechnologyHydraulic Pressure with Vibration
Hydraulic Press15-20 Ton Hydraulic Pressure
Cavity4 Brick Per Stroke
Dai ChangeableYes, you can change
Pressure AdjustableYes
Hy. Motor2 HP
Vibration Motor1 HP
FeedingAttached, Hopper Box
PhaseSingle & Three both available
Cycle20-30 Sec

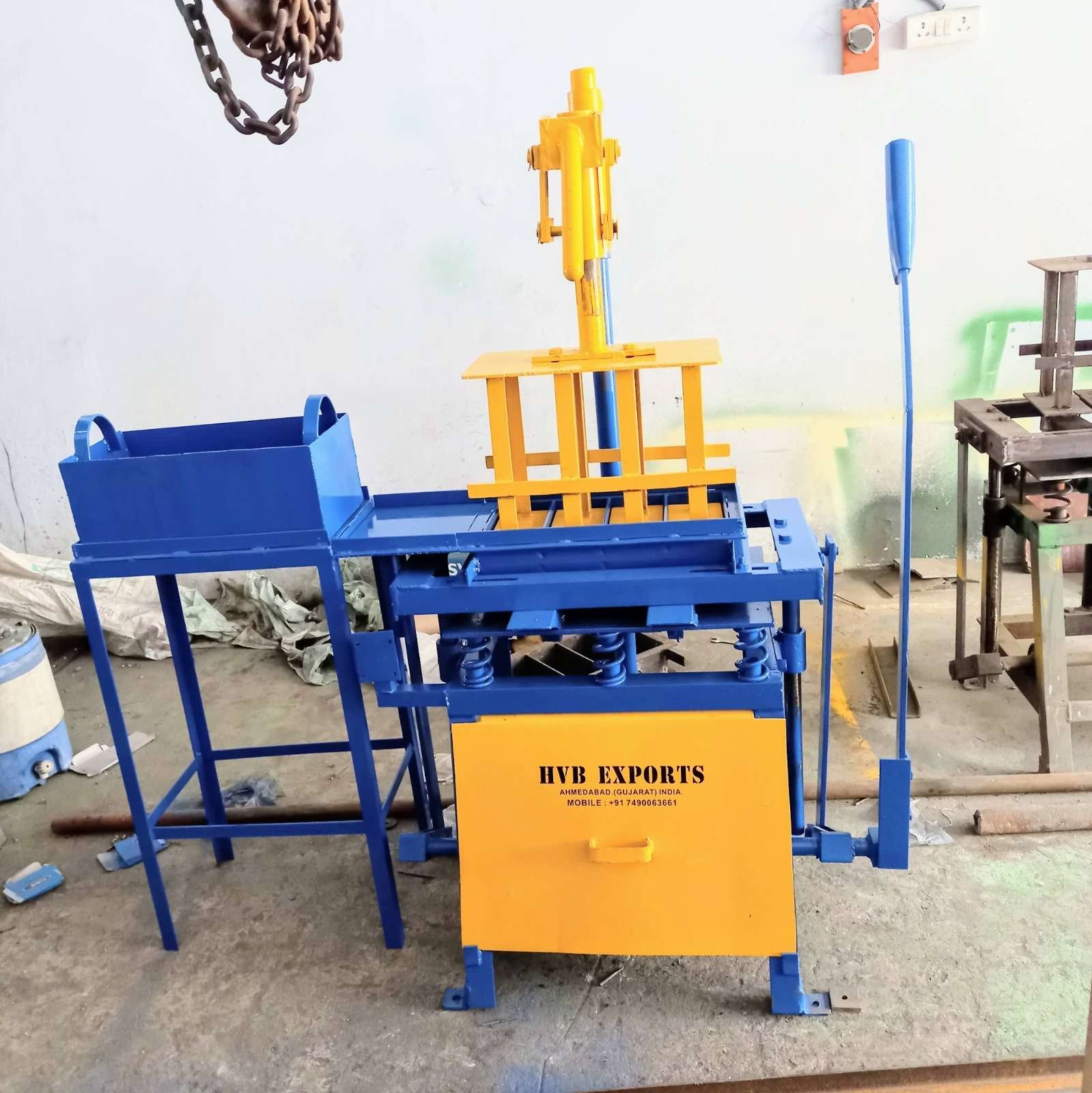

HVB300m Manual Fly Ash Brick Making Machine
HVB300m
Mould Size4 Brick/Stroke6 Brick/Stroke
9x4x3 Inch4 Brick/stoke6 Brick/stoke
9x6x4/3 Inch2 Brick/Stoke4 Brick/Stoke
10x5x3 Inch4 Brick/Stoke6 Brick/Stoke
12x8x8 Inch1 Block/Stoke2 Block/stoke
Type: Hand Operated Vibration Brick Machine  |  Vibration Motor: 1 HP / 1.5 HP  |  Setup: Machine with Material Feeding Box
Our Helping Hands
polyhydron
TATA STEEL
Schneider Electric
DOWTY
SKF
YUKEN
SIEMENS
JINDAL STEEL & POWER
RR / KABEL
HAVELLS
rexroth

VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine
HVBPAN
PAN MIXER PLANT
High Performance Pan Mixer For Quality Concrete & Brick Mix
Key Features
Uniform & Homogeneous MixingFor strong & durable bricks
High ProductivitySaves time & increases output
Heavy Duty ConstructionLong life & low maintenance
Suitable for Various MaterialsFly ash, sand, cement, chips etc.

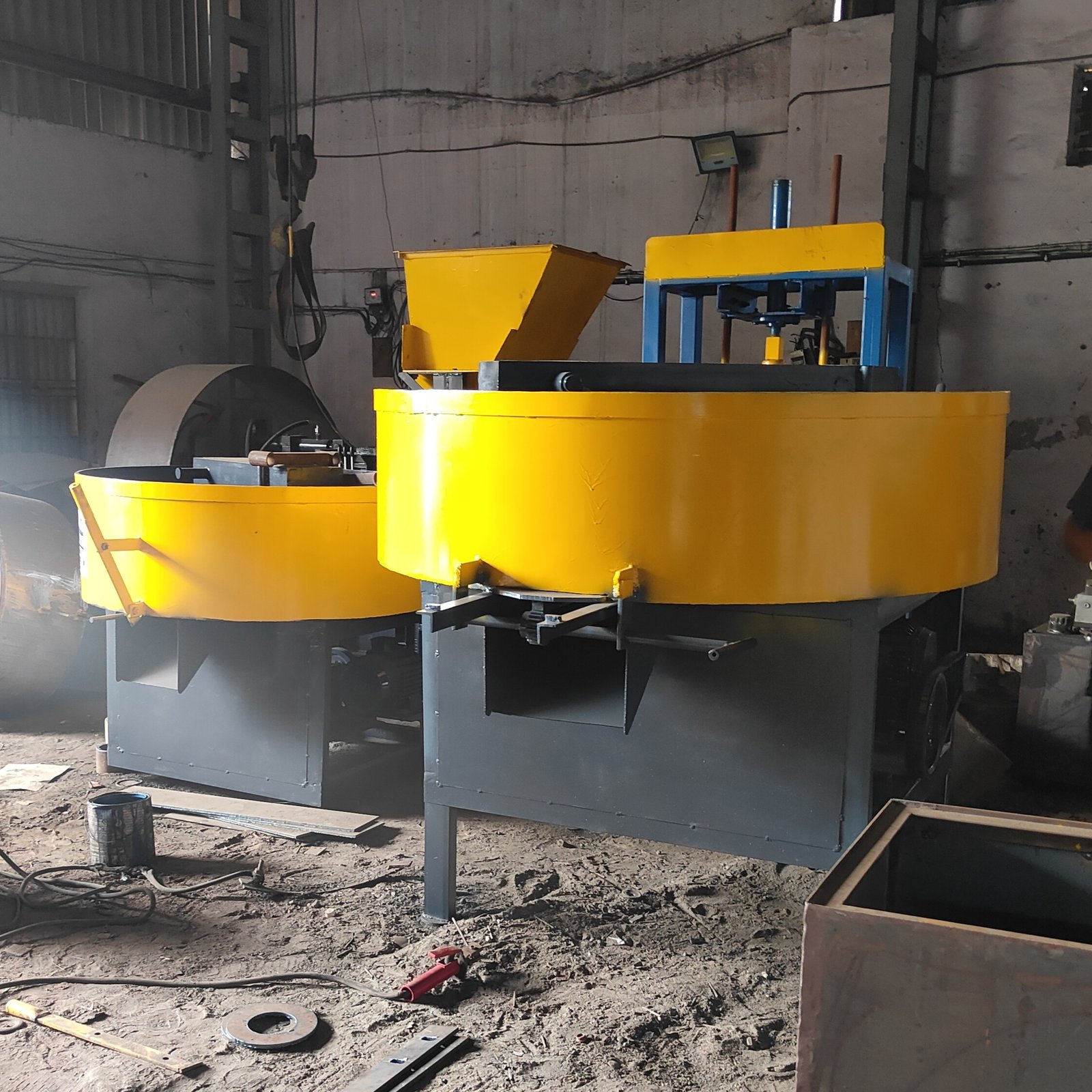

HVBPAN Plant
Available Capacity
150 KG
(3 FT)
250 KG
(4 FT)
500 KG
(5 FT)
600 KG
(6 FT)
Technical Specification
MODELHVB PM 150 (3 FT)HVB PM 250 (4 FT)HVB PM 500 (5 FT)HVB PM 600 (6 FT)
Capacity150 KG/Batch250 KG/Batch500 KG/Batch600 KG/Batch
Pan Diameter3 Feet (900mm)4 Feet (1200mm)5 Feet (1500mm)6 Feet (1800mm)
Mixing Time3 – 5 Min / Batch (all models)
Power Required5 HP7.5 HP10 HP15 HP
Gear Box24.1 Ratio24.1 Ratio22.1 Ratio22.1 Ratio
Mixing TypeRoller Type / Blade Type
Weight (Approx.)500 KG750 KG1100 KG1350 KG
Pan Mixer Types
ROLLER TYPE PAN MIXER
Roller Type Pan Mixer
  • Heavy duty roller for better mixing
  • Ideal for brick, block & paver mix
  • Low maintenance and long life
BLADE TYPE PAN MIXER
Blade Type Pan Mixer
  • High speed blades for uniform mixing
  • Suitable for concrete & hard mix
  • Strong structure & high efficiency
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code
HVB Exports - Fly Ash Brick Making Machine
HVB103S Vibration Table Plant for Paver Block
HVB103S Vibration Table
BrandHVB Exports
Table Size10x3 FT & 9x2.5 FT
Power2 HP (2800 rpm vibro motor)
Thickness8mm side and 8mm bottom plate
BodyPipe Body Structure
VibrationHeavy Rubber Mounting
BladesFlexible type
COLOR PAN MIXER
BrandHVB Exports
Capacity100-150 KG
Power2 HP (three phase)
Gear BoxAttached
Diameter32 Inch
ThicknessSide 6mm and bottom 10mm
TypeDrum Rotate Mixing
Color Pan Mixer

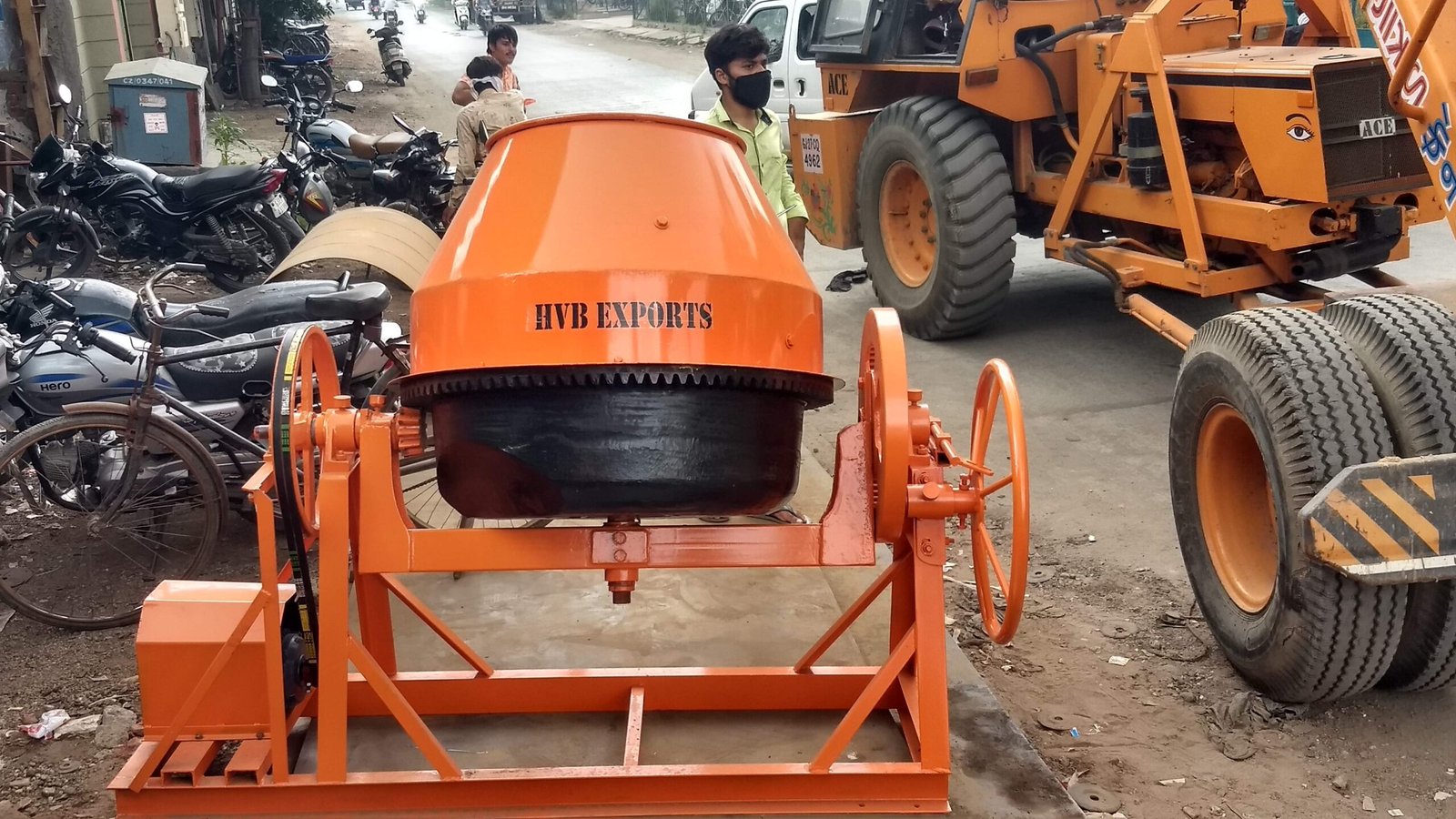

Concrete Mixer Machine
CONCRETE MIXER MACHINE
BrandHVB Exports
Capacity300 LTR
Power5 HP
TypeStand Type
WorkingMotor or Diesel Engine
BottomCasting Body
PVC/Plastic Mould, Top Layer Color & Hardener for Making Paver Block

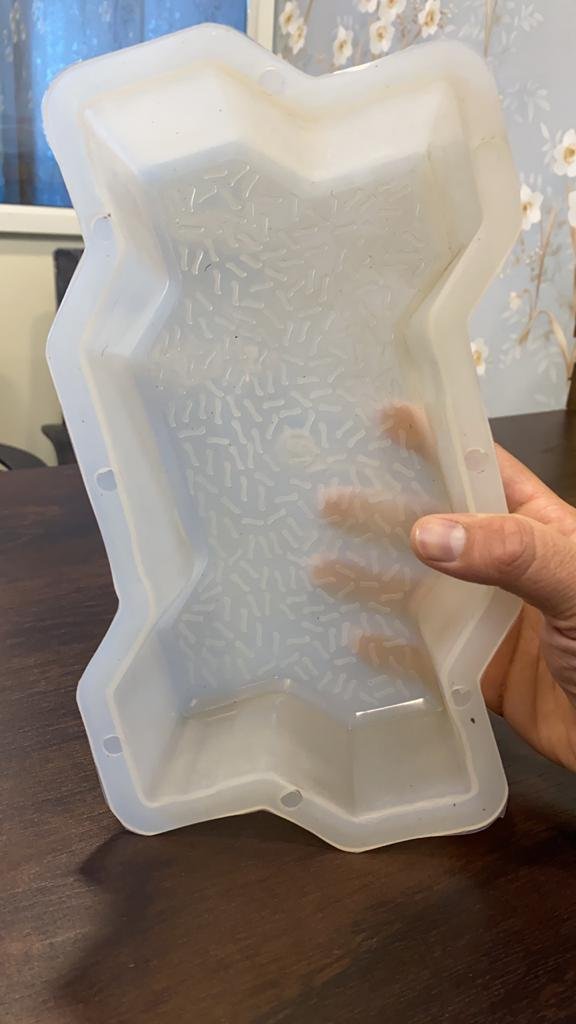

PVC/Plastic Mould
PVC / PLASTIC MOULD
Top Layer Color
TOP LAYER COLOR
HARDENER
PAVER BLOCK MAKING MACHINE
VISIT OUR WEBSITEwww.hvbexports.com
CALL US+91 99094 92697 / +91 90167 85122
CHAT ON WHATSAPPScan QR Code

INSTALLED PLANTS ACROSS

INDIA

India Map - Installed Plants
Installed Plant Factory — Ahmedabad, Gujarat
MANUFACTURING UNITPlot No 3757, Opp Naroto Unit 1,
Phase 4, Vatva GIDC,
Ahmedabad, Gujarat, India - 382445
CONTACT US+91 9909492697
+91 9016785122
+91 9313413042
info@hvbexports.com
WEBSITEhvbexports.com
